Solar PV Application Scenarios
Solar PV Carport Systems (Dual-Function Parking & Power Generation)
Description
Overview / 概述

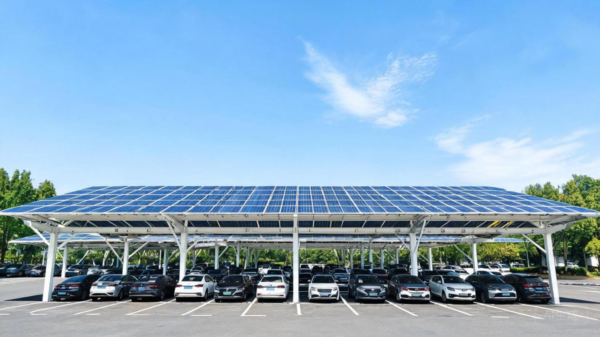

Solar PV carports combine parking infrastructure with photovoltaic power generation, creating a dual-use solution that generates clean electricity while providing shaded parking. The integration of EV charging stations further enhances the value proposition.
光伏车棚将停车设施与光伏发电相结合，形成一种在提供遮雨遮阳停车功能的同时产生清洁电力的双重利用方案。电动汽车充电桩的集成进一步提升了其价值。
Mounting Structure Details / 支架结构详情

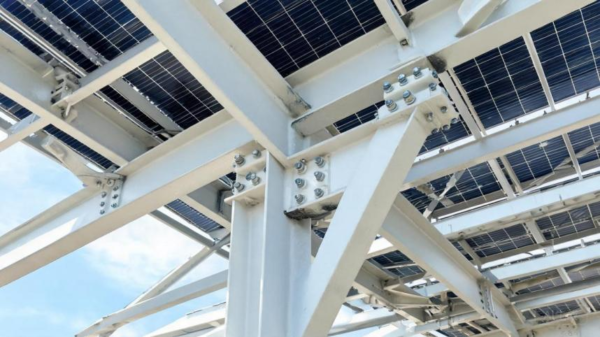

PV carport structures are typically constructed using hot-dip galvanized steel I-beams as main columns and beams, forming a canopy spanning multiple parking spaces. The main steel framework supports secondary aluminum purlins,
on which PV modules are mounted using standard clamp systems. Foundation types depend on soil conditions.
光伏车棚结构通常采用热镀锌工字钢作为主立柱和主梁 ，形成跨越多个停车位的雨棚结构。主钢框架支撑次檩条，光伏组件通过标准压块系统安装在檩条上。基础形式根据土质条件确定。
| Structure Type结构类型 | Steel frame canopy (I/H-beam)钢结构雨棚（工字钢/H型钢） |
| Column Material立柱材质 | Hot-dip galvanized Q235B热镀锌Q235B钢 |
| Beam Type梁形式 | I-beam or truss structure工字钢或桁架结构 |
| PV Mounting光伏安装 | Aluminum rails on steel purlins钢檩条 +铝导轨 |
| Column Spacing柱距 | 5-8m per bay, 2-3 spaces每跨5-8米，2-3个车位 |
| Clear Height净空高度 | 2.8 – 3.5 meters
2.8 – 3.5米 |
| Foundation基础形式 | Reinforced concrete
钢筋混凝土基础 |
| Coating表面处理 | Hot-dip galvanized + paint热镀锌 + 涂装 |
Key Advantages / 核心优势
- Efficient dual-use of land -parking and power generation
土地高效复合利用——停车与发电兼顾
- Provides weather protection for vehicles
为车辆提供遮风挡雨的保护
- Naturalpairing with electric vehicle charging
与电动汽车充电天然结合
- Ideal for commercial centers andpublic facilities
非常适合商业中心和公共设施
- High visibilitypromotes renewable energy awareness
展示性强，提升绿色形象
