Ground-Mounted Solar Farms (Utility-Scale Solar Power Stations)
Description
Overview / 概述

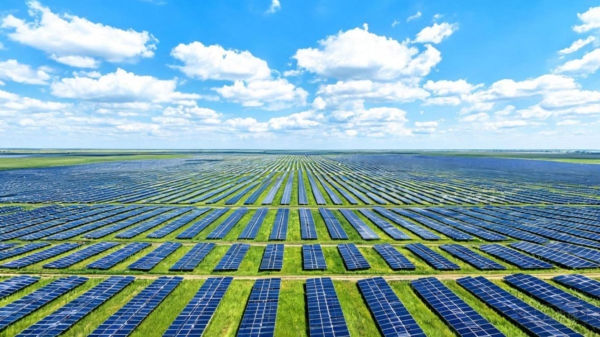

Ground-mounted solar farms are large-scale PV installations built on open land, ranging from several megawatts to hundreds of megawatts. They feed electricity directly into the power grid and represent the most cost-competitive form of solar power generation on a per-kilowatt-hour basis.
地面集中式光伏电站是建在开阔土地上的大型光伏装置，容量从几兆瓦到几百兆瓦不等。它们直接向电网供电，是单位度电成本最具竞争力的太阳能发电形式。
Mounting Structure Details / 支架结构详情

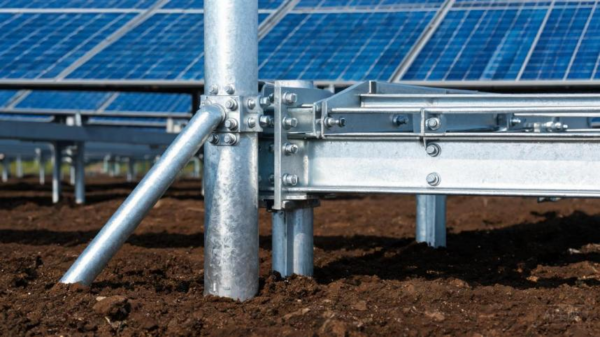

Ground-mounted PV systems use steel pipe piles driven into the ground as the primary foundation. Hot-dip galvanized steel beams and purlins form the module mounting structure above. For utility-scale projects, single-axis or dual-axis
tracking systems are increasingly common, increasing energy yield by 20-30%.
地面光伏系统采用打入地下的钢管桩作为主要基础。热镀锌钢梁和檩条在上方形成组件安装结构。对于大型电站，单轴或双轴跟踪系统越来越普遍，可提高发电量20-30%。
| Structure Type结构类型 | Galvanized steel pile + beam镀锌钢管桩 + 横梁 |
| Pile Type桩类型 | Screw pile / driven pile螺旋桩 / 打入桩 |
| Pile Diameter桩径 | 76 – 140 mm steel pipe
76 – 140毫米钢管 |
| Pile Depth桩深 | 1.5 – 3 meters
1.5 – 3米 |
| Purlin檩条 | Galvanized C/Z-channel镀锌C型/Z型钢 |
| Tilt Angle倾角 | 20-40° (latitude optimized) 20-40度（按纬度优化） |
| Row Spacing行距 | 3 – 6 meters
3 – 6米 |
| Design Load设计荷载 | Per local building code按当地规范设计 |
Key Advantages / 核心优势
- Lowest costper kWh due to economies of scale
规模效应带来最低的度电成本
- Flexible site selection – canuse low-value land
选址灵活，可利用低价值土地
- Easyinstallation and maintenance access
安装和维护通道便捷
- Optimized tilt angle formaximum energyyield
倾角优化，发电量最大化
- Compatible with tracking systems for higher output
可配跟踪系统，提升发电量
