Constant temperature and humidity system

A constant temperature and humidity system is one in which both the ambient air temperature and humidity are constant. "Constant" here does not mean strictly unchanging, but rather a state of relatively constant dynamic equilibrium. Therefore, as long as both temperature and humidity meet certain boundaries, the system can be considered constant temperature and humidity.

Description

Jinghe-constant temperature and humidity system construction advantages
  • Precise customization of solutions

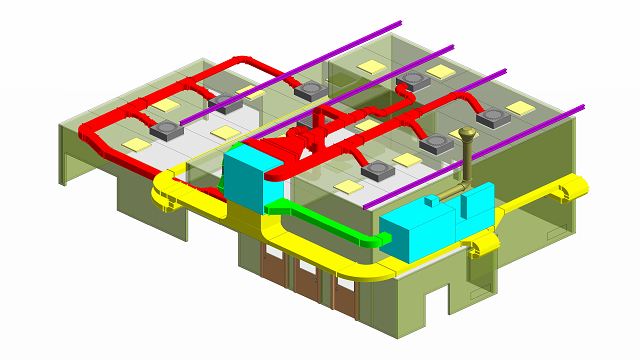

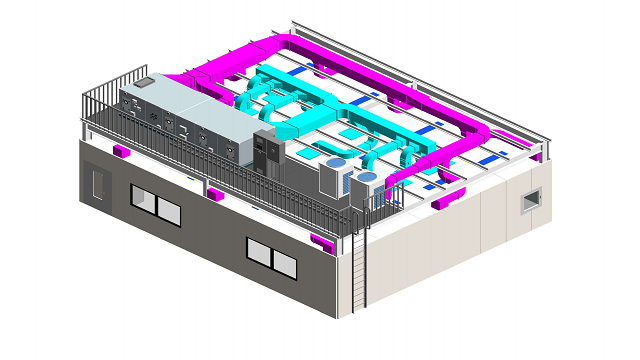

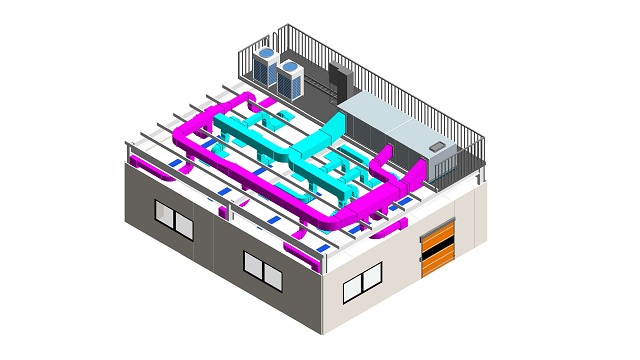

    We will communicate with customers multiple times and conduct thorough discussions based on their needs, provide multi-dimensional suggestions, and offer solutions suitable for their industry. We will come up with solutions within 7 days and can provide intuitive 3D video solutions.

  • High control accuracy

    The standard temperature control accuracy is ±2°C, and the maximum can reach ±0.2°C; the humidity control accuracy can reach ±5%RH, and the maximum can reach ±2%RH;

  • Verifiable overall effectiveness

    Index parameters and energy-saving efficiency can be verified by third-party organizations or during use;

  • System stability assurance

    The supply chain uses domestic and foreign brand products, and the equipment design, configuration and selection are reasonable, effectively ensuring the continuous stability of the constant temperature and humidity system;

  • Strong team

    We have 22 technicians, 8 senior engineers, 10 intermediate engineers, and 15 people with 20 years of industry design experience. We integrate development and design capabilities with rich manufacturing experience to tailor various non-standard constant temperature and humidity environments for you.

  • Worry-free after-sales value-added services

    400 hotline responds promptly 24/7, provides solutions within 1 hour, and provides on-site service within 24 hours; a value-added service department is established to provide maintenance services, with a full range of consumables, stocked year-round, and provided at factory prices;

System Overview

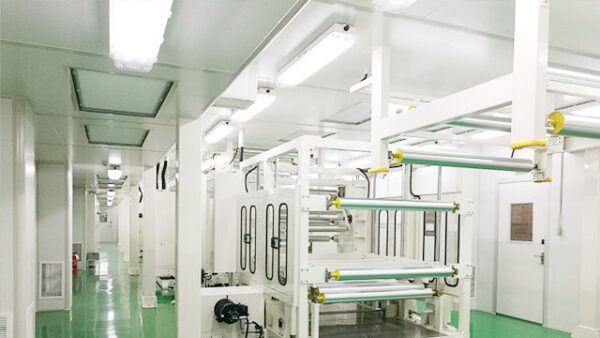

With technological advancements and improved product quality, constant temperature and humidity systems are increasingly required in a growing number of industries, fields, and scenarios, such as production and processing workshops, assembly plants, burn-in rooms, laboratories, and warehouses.
A constant temperature and humidity system is an air conditioning system that integrates multiple functions and effects, typically integrating air filtration, fresh air supply, cooling, heating, dehumidification, humidification, monitoring, and automatic control.
Compared to conventional air conditioning systems, constant temperature and humidity systems consume more energy due to their target requirements and operating principles. Therefore, energy efficiency is increasingly becoming a key evaluation metric for constant temperature and humidity systems. The energy sources required for
a constant temperature and humidity system include: a cooling source (such as a chiller, condensing unit), a heating source (such as a water heater, boiler, steam), a humidification source (such as pure water, soft water, tap water, dry steam), and a power source.

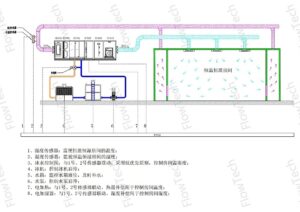

Principle of constant temperature and humidity system



According to temperature and humidity conditions

Conventional

Temperature 20~30℃±2℃
Relative humidity 40%~70%±10%

Precision

Temperature 20~30℃±1℃
Relative humidity 40%~70%±5%

High precision type

Temperature 20~30℃±0.2℃
Relative humidity 40%~70%±2%

Normal temperature and low humidity type

Temperature 20~30℃
Relative humidity 15%~40%

High temperature and high humidity type

Temperature 35~50℃
Relative humidity 50%~90%

Low dew point type

Temperature 20~30℃, relative humidity <5%
dew point temperature -60℃~-20℃
