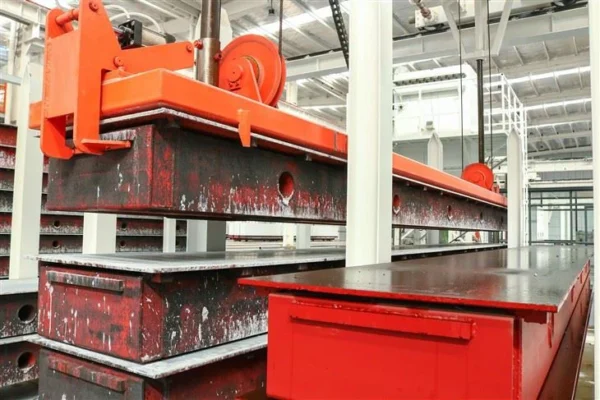

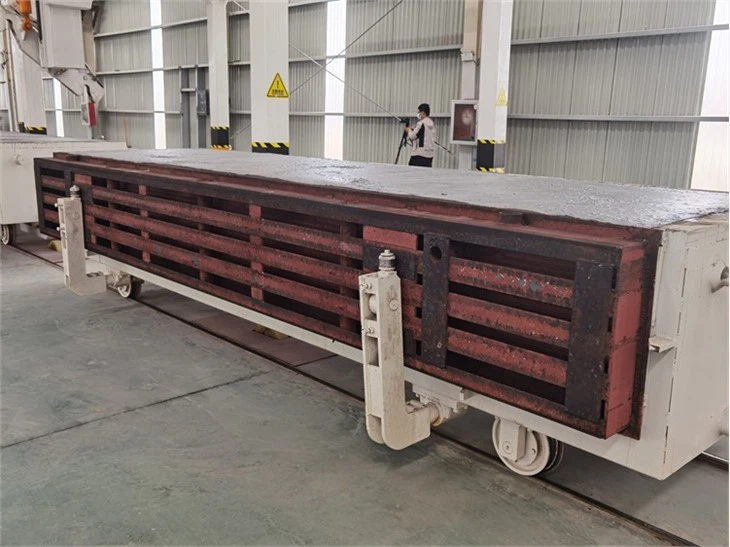

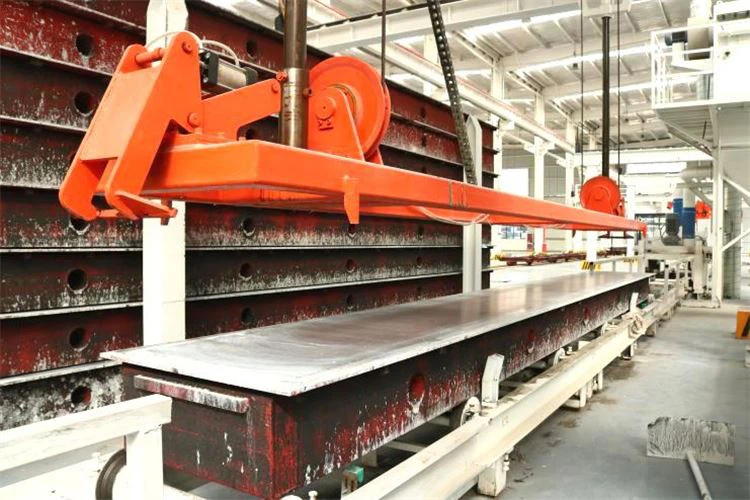

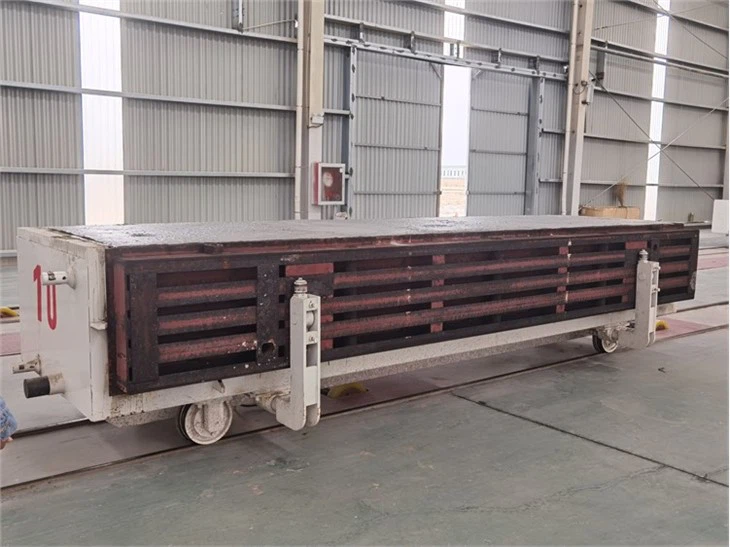

AAC Block Mould Side Plate

Equipment material: The main material of the steel frame is a 250×250H section steel and two 25#b pieces Channel steel as the skeleton, through seamless pipe, steel plate welding; The panel adopts 12mm steel plate and the steel frame adopts suspension connection.

Description

Main Parameter

Equipment size: 6240×700×290mm;

Equipment material: The main material of the steel frame is a 250×250H section steel and two 25#b pieces Channel steel as the skeleton, through seamless pipe, steel plate welding; The panel adopts 12mm steel plate and the steel frame adopts suspension connection.



Feature

1. The panel adopts steel plate and steel frame suspension connection, which can effectively alleviate the thermal deformation in the process of steaming and maintaining the service life of the side plate. It is equipped with special plate insertion and drilling positioning holes to realize the accurate positioning of the cage frame.

2. Use special tooling when assembling base and panel to ensure uniformity of thickness of all side panels;

3. The plate positioning pin is welded by tooling to ensure dimensional accuracy.
